Rohde & Schwarz R&S FSV3007 Signal And Spectrum Analyzer 10 Hz to 7.5 GHz

The Rohde & Schwarz FSV3007 Signal and Spectrum Analyzer features functions that make complex measurements fast and easy. Setting up RF parameters with touchscreen gestures is as easy as using your smartphone. The auto set feature automatically sets the most important parameters such as frequency, level and gating. The SCPI recorder, which translates manual operation into remote control command scripts, is the dream of any test system software engineer. The Rohde & Schwarz FSV3007 has been designed for high-speed measurements. Production lines benefit from fast measurement times for spectral measurements, highspeed signal demodulation and rapid switching between different measurement modes.

With 200 MHz of analysis bandwidth, the Rohde & Schwarz FSV3007 is ideal for analyzing wireless communications signals in R&D, system testing, verification and production. It allows capturing of two neighboring 5G NR carriers at once. This saves measurement time and makes it possible to analyze interactions and timing between the carriers. With the optional YIG bypass, the 200 MHz bandwidth is available up to the maximum frequency. The FSV3007 features an excellent dynamic range, which is beneficial not only for spectral measurements but also for analyzing and demodulating signals with a high crest factor, such as OFDM signals or signals with a high modulation order. Excellent EVM values better than 1% are possible with 160 MHz wide WLAN signals and also for 5G NR signals.

Specifications for the ROHDE & SCHWARZ FSV3007 Signal and Spectrum Analyzer Include:

Frequency range

R&S®FSV3004 10 Hz to 4 GHz
R&S®FSV3007 10 Hz to 7.5 GHz
R&S®FSV3013 10 Hz to 13.6 GHz
R&S®FSV3030 10 Hz to 30 GHz
R&S®FSV3044 10 Hz to 44 GHz

Aging of frequency reference 1 × 10–6 per year with R&S®FSV3-B4 option 1 × 10–7 per year
Bandwidth standard filter 1 Hz to 10 MHz
Resolution bandwidths RRC filter 18 kHz (NADC), 24.3 kHz (TETRA), 3.84 MHz (3GPP), 4.096 MHz channel filter 100 Hz to 5 MHz video filter 1 Hz to 10 MHz
I/Q demodulation bandwidth standard 28 MHz
with R&S®FSV3-B40 option 40 MHz
with R&S®FSV3-B200 option 200 MHz
Phase noise 1 GHz carrier
1 kHz offset < –101 dBc
10 kHz offset < –107 dBc
100 kHz offset < –115 dBc
1 MHz offset < –135 dBc
Displayed average noise level (DANL) 1 GHz –151 dBm (typ.)
DANL with preamplifier (R&S®FSV3-B24 option) 50 MHz ≤ f < 3 GHz –165 dBm (typ.)
Intermodulation
Third-order intercept (TOI) 1 GHz > 15 dBm, typ. 18 dBm
Total measurement uncertainty 2 GHz 0.29 dB

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.

FSV3007 Signal And Spectrum Analyzer

Signal And Spectrum Analyzer With Touchscreen

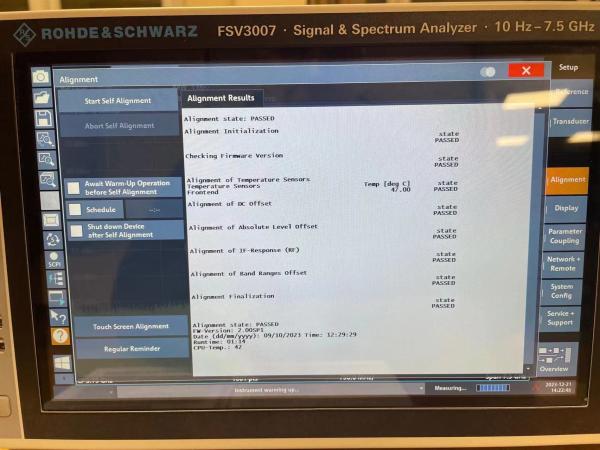

Rohde & Schwarz FSV3007 Signal And Spectrum Analyzer 10 Hz To 7.5 GHz With Touchscreen Images
